            AC31002 Series Global Navigation (GNSS), L1 Embedded FPC Antennas
                    Antennas from The Antenna Company feature excellent efficiency and VSWR characteristics to provide quality of service for GNSS applications like vehicle tracking


Image of The Antenna Company AC31002 Series Global Navigation (GNSS) L1 Embedded FPC Antennas The AC31002 from The Antenna Company is a flexible printed circuit (FPC) antenna that is an omnidirectional, linearly polarized, global navigation antenna operating in the GPS L1, Galileo E1, GLONASS L1, Beidou B1-BOC, and QZSS bands. The AC31002 antenna features excellent efficiency and VSWR characteristics, providing quality of service for GNSS applications like vehicle tracking.

The flexibility and peel-and-stick adhesive backing make the AC31002 antenna easy to mount in unique and custom enclosures. Connection is made to the radio via a 1.13 mm coaxial cable terminated in a U.FL-type plug connector. Various cable length options are available (see ordering information).

Features

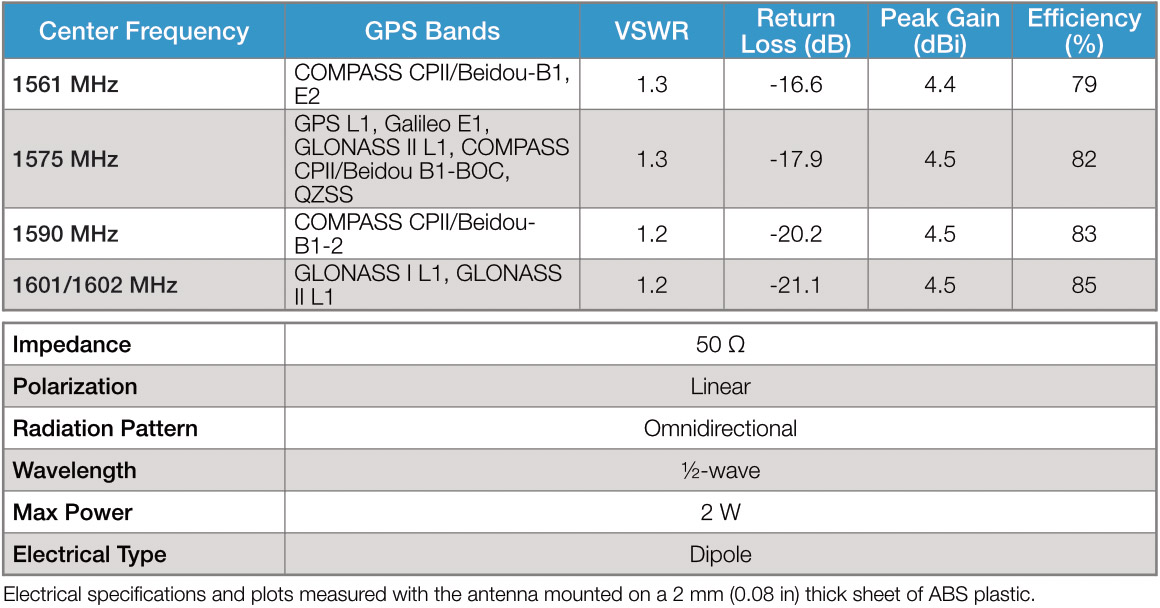

Performance at 1.567 GHz to 1.584 GHz:

VSWR: 1.3
Peak gain: 4.5 dBi
Efficiency: 83%

Performance at 1.593 GHz to 1.609 GHz:

VSWR: 1.2
Peak gain: 4.5 dBi
Efficiency: 86%

Compact L-shape form factor

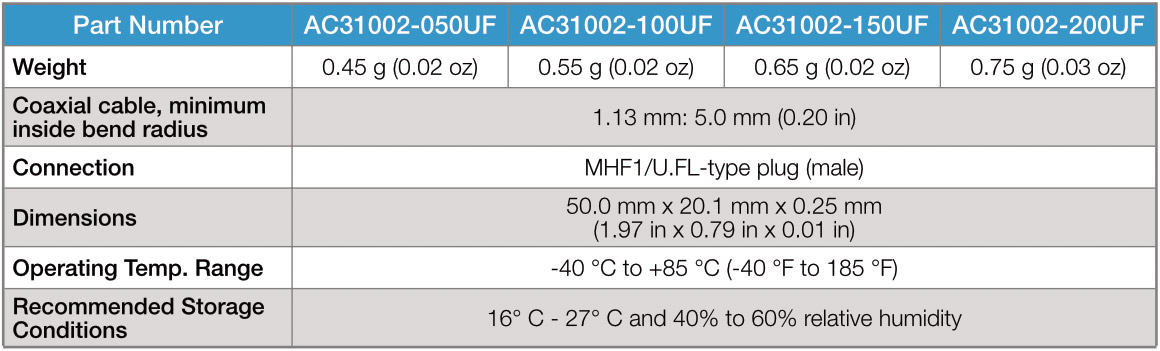

50.0 mm x 20.1 mm x 0.25 mm
Linear polarization for use in varying orientations
MHF1/U.FL-compatible plug termination
Ground plane independent
Clean resonance with no unwanted out-of-band response

Applications

Global navigation (GNSS):

GPS L1
Galileo E1
GLONASS L1
Beidou B1-BOC
QZSS

Timing applications

IoT applications:

Asset tracking
Smart energy
M2M industrial
Wearables/healthcare
UAV/drones

OBD-II modules
